Page 7: Summary
06-16-2011, 04:37 PM, (This post was last modified: 06-23-2011, 04:12 PM by ashimo.)
#1
Page 7: Summary
TRY 3 Summary

Create the data to be displayed with RecordSet

Data creation

Code:
{RecordSet
    {RecordFields
        {RecordField field name 1, [option 1 = value, …] } ,
        || Describe field value
        {RecordField field name x, [option x = value, …] } ,
    },
    {RecordData field name 1 = data, …},
    || Describe record value
    {RecordData field name 1 = data, …},
}

Display the data using a Grid with RecordGrid

Grid display

Code:
{RecordGrid
    record-source = RecordSet
    || ,
    || Option = value
}

Options for modifying RecordGrid Functionality

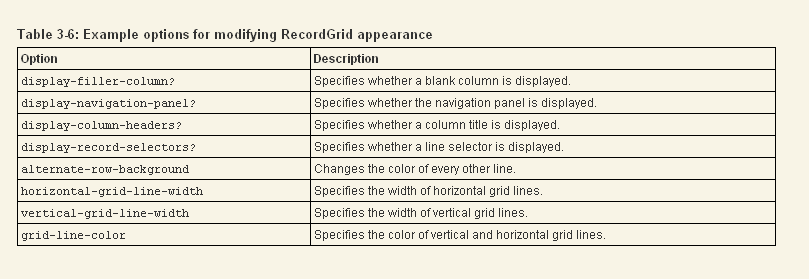

Options for modifying RecordGrid appearance



Sorting and Filtering

Data sorting

Code:
set RecordGrid-name.sort = field name

Data filtering

Code:
set RecordGrid-name.filter = {RecordData field name = value}

Note: By using RecordSort and RecordFilter, you can specify more complex sorting and filtering.



Attached Files
.png   3-5.PNG (Size: 13.32 KB / Downloads: 619)
.png   3-6.PNG (Size: 14.11 KB / Downloads: 640)
