Page 4: Structure of a Program for Setting the RecordGrid's Appearance and Functiona
06-16-2011, 04:24 PM, (This post was last modified: 06-23-2011, 04:10 PM by ashimo.)
#1
Page 4: Structure of a Program for Setting the RecordGrid's Appearance and Functiona
Structure of a Program for Setting the RecordGrid's Appearance and Functionality

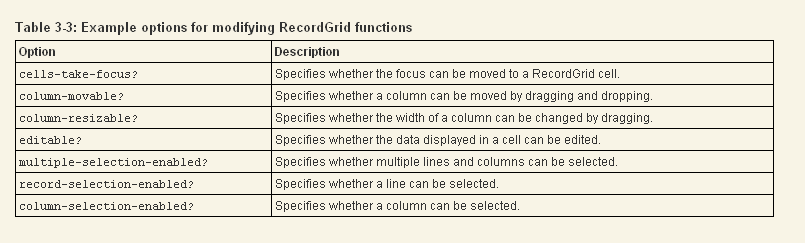

1. Setting function-modifying options such as 'cells-take-focus?'

Code:
cells-take-focus? = false,
column-movable? = false,
column-resizable? = false,
editable?  = false,
multiple-selection-enabled? = false,
record-selection-enabled? = false,
column-selection-enabled? = true,

As we found in Basics 1, RecordGrid has many actions that the user can perform. These can be modified by specifying options. Let’s take a brief look at these options.





Let’s take a look at what happens when we change the true/false settings.

2. Setting options that affect the appearance

Code:
display-filler-column? = true,
display-navigation-panel? = false,
alternate-row-background = #ddeeee,
grid-line-color = #aaaaaa,
horizontal-grid-line-width = 1px,
vertical-grid-line-width = 2px

In (1), we touched on the function-modifying options. Here, we’ll look at those options that are used to change the appearance.




Try changing the values of the above options to see how they affect the appearance.


Attached Files
.png   3-3.PNG (Size: 13.04 KB / Downloads: 676)
.png   3-4.PNG (Size: 19.63 KB / Downloads: 640)
